Under Cabinet COB LED Strip Light Collection Display Closet Bookcase Wardrobe Lamp Tape Penetrable Wood Dimmable Touch Sensor

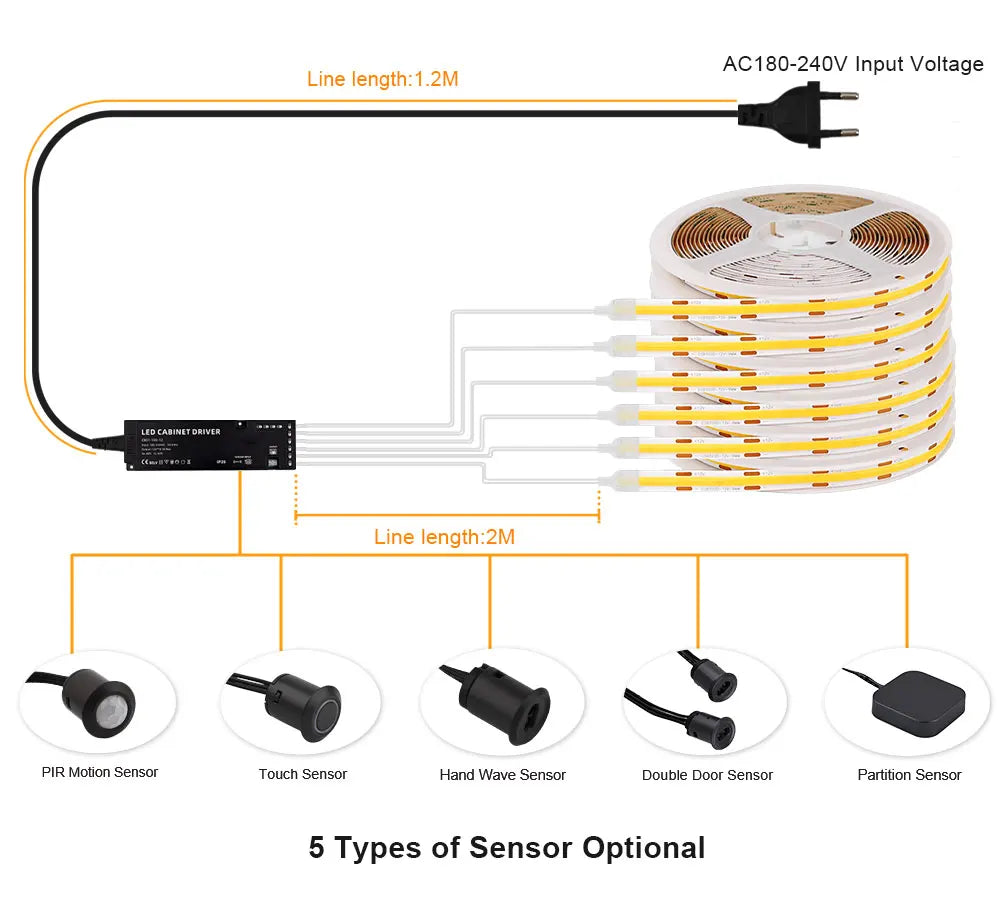

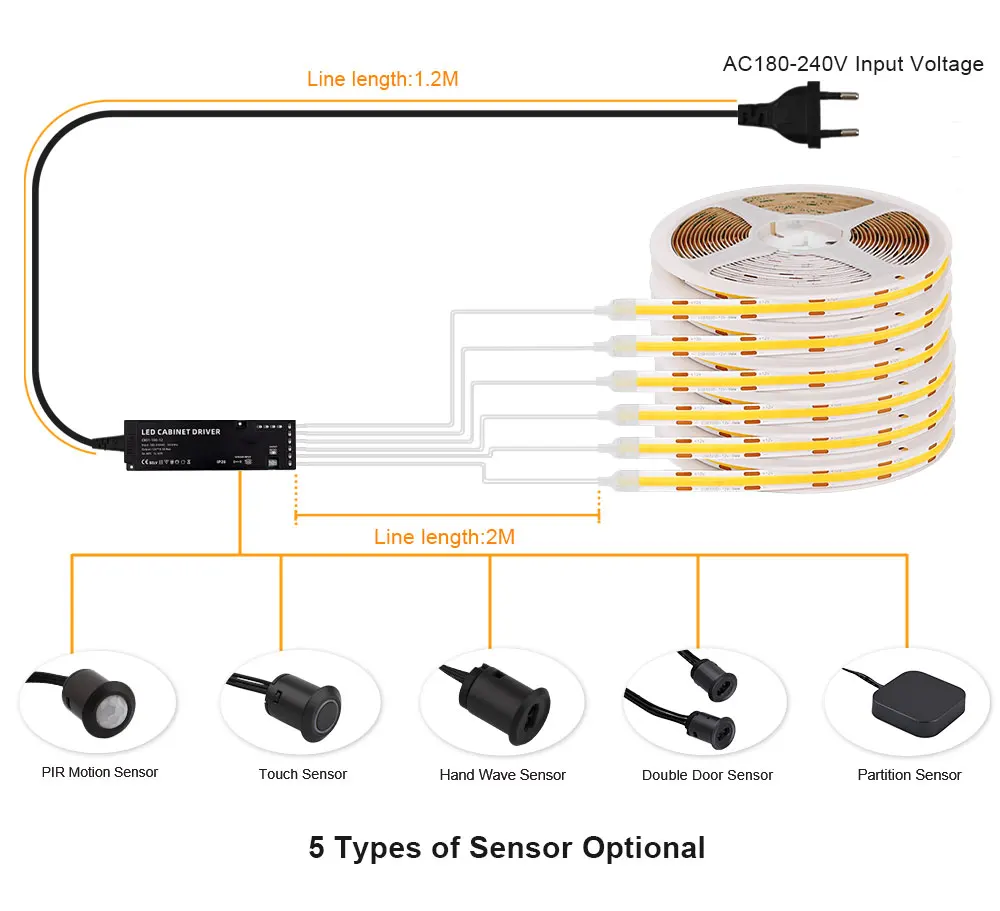

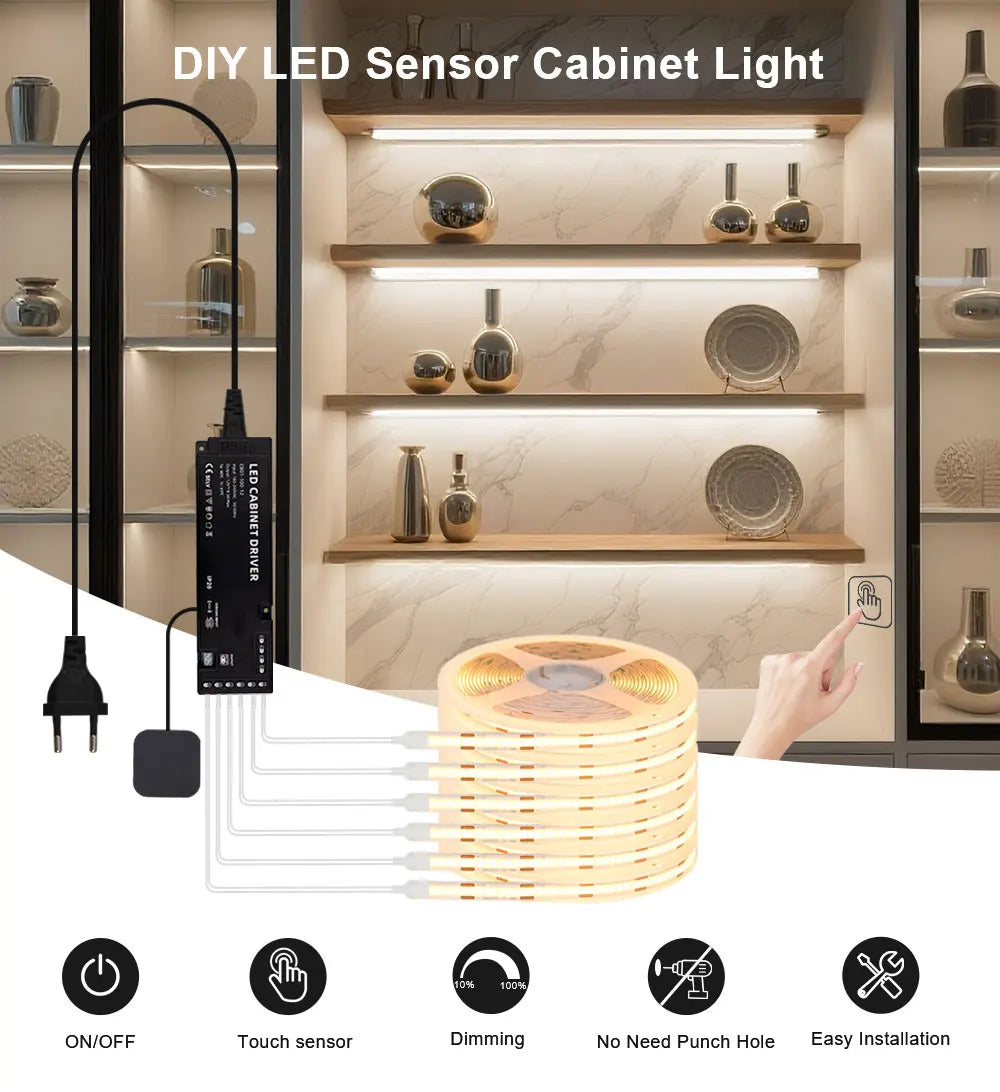

How to DIY a set of cabinet led strip?

1. Choose the quantity and length of led strip needed.
2. Count the total power of the led strips and buy a suitable led driver. ( The led strip is 8W/m, for example if choose 4pcs 3m led strip, total 4*3*8=96W power, then need to choose a 100W driver at least )
3. Choose a led sensor you prefer.

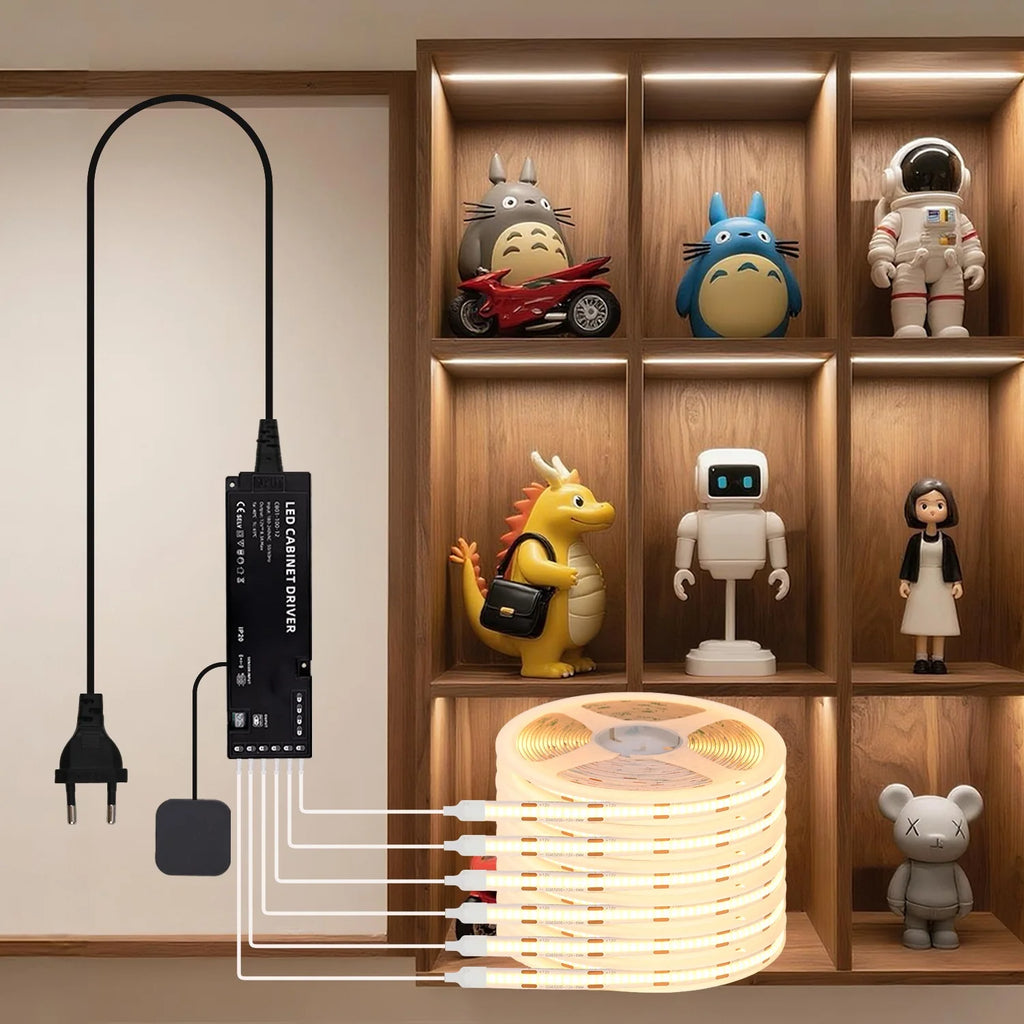

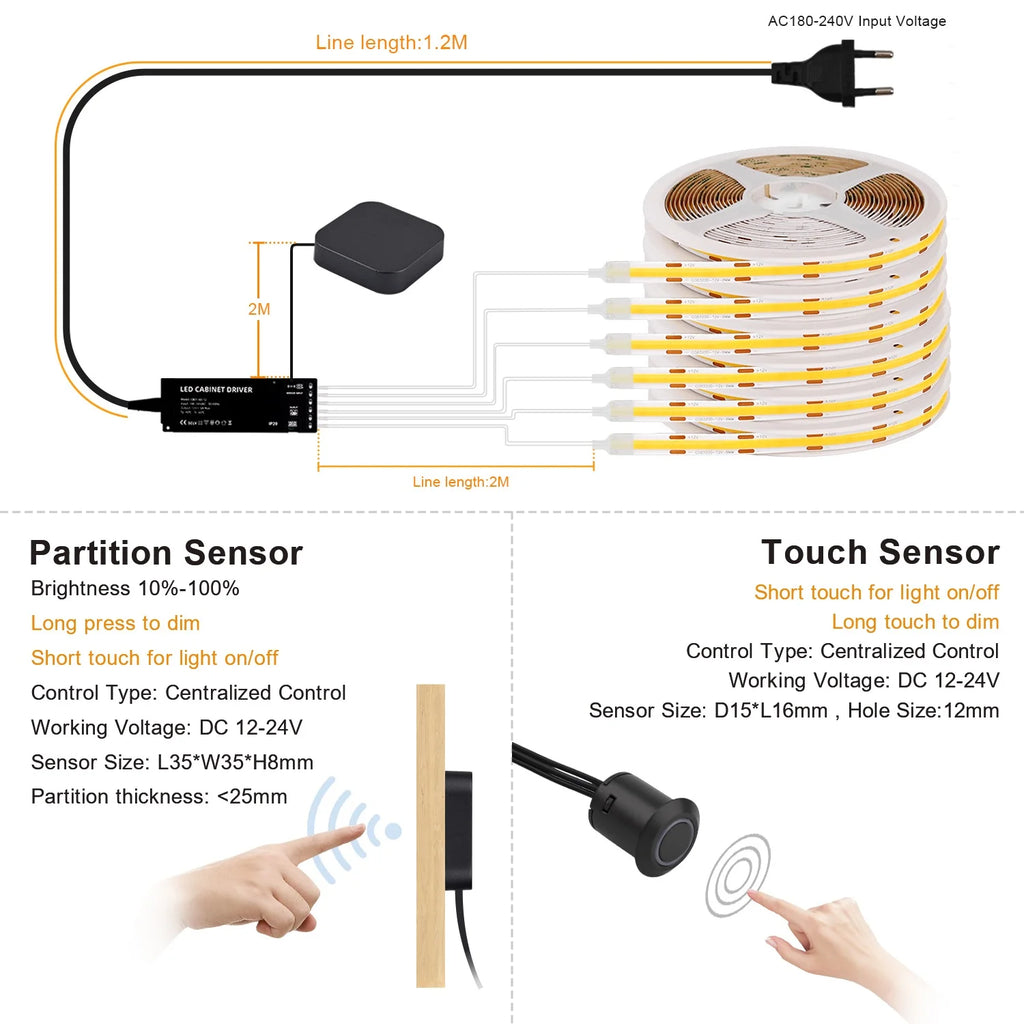

4. Assemble the led strip, driver and led sensor as the video manual shows.

Notice:

This product is DIY led cabinet light, the led strip, driver and sensor are all individually, not packed together, if want to DIY a set of led strip, then need to buy the led strip, driver and sensor together, thanks

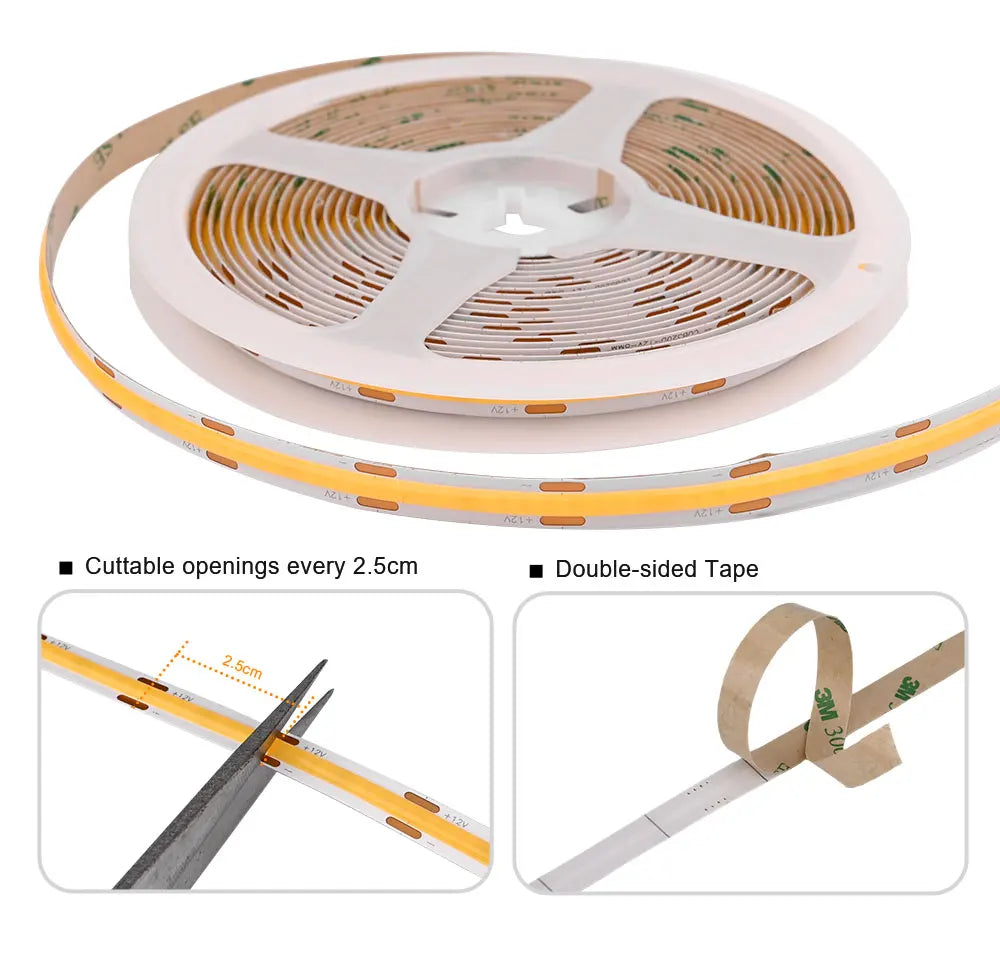

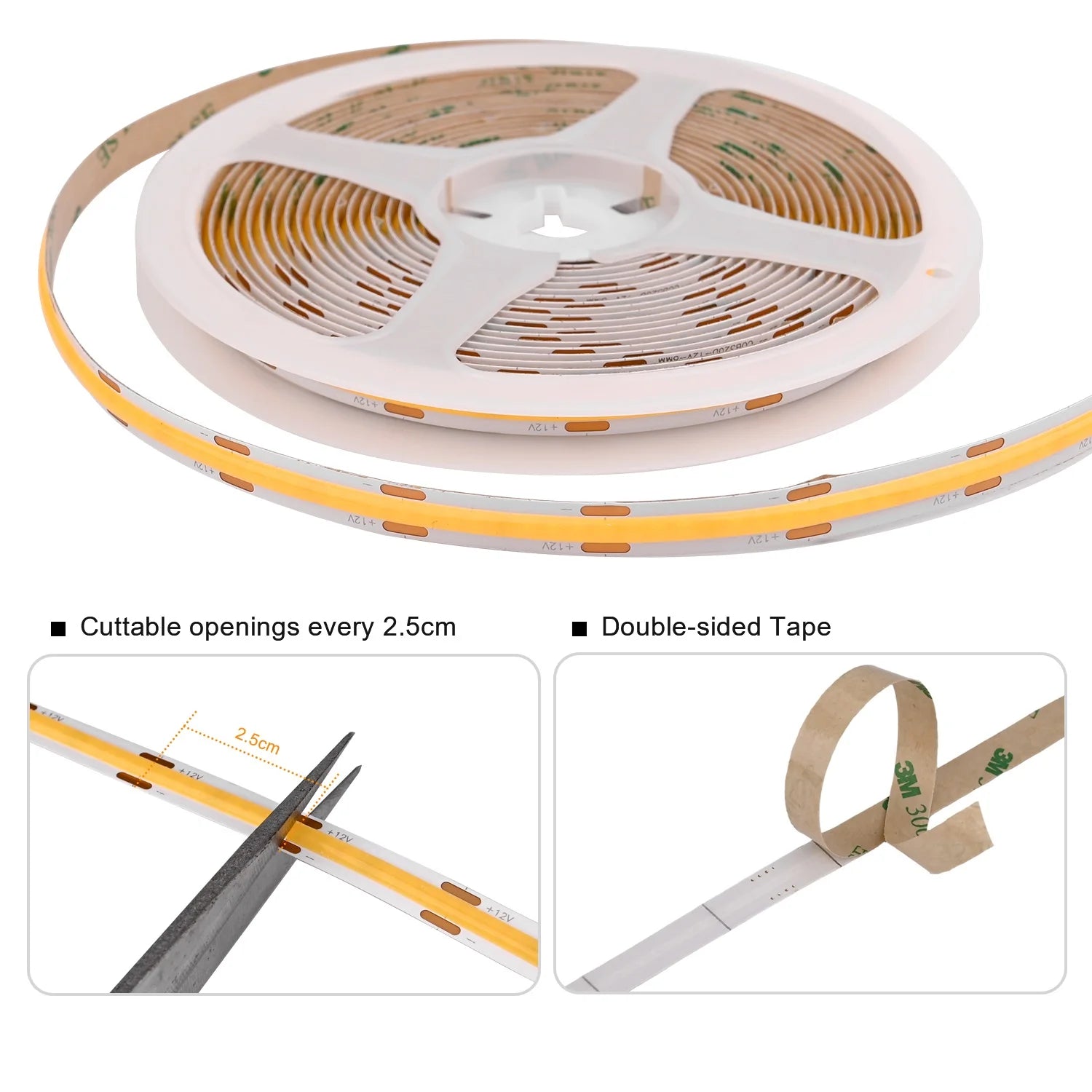

COB LED Strip:

Length: 100CM/200CM/300CM/500CM(per 2.5cm cuttable)
Dimmable: Yes
LED quantity: 320 LEDs/m
Input Voltage: DC12V
Wattage: 8W/m
FPCB width: 8mm

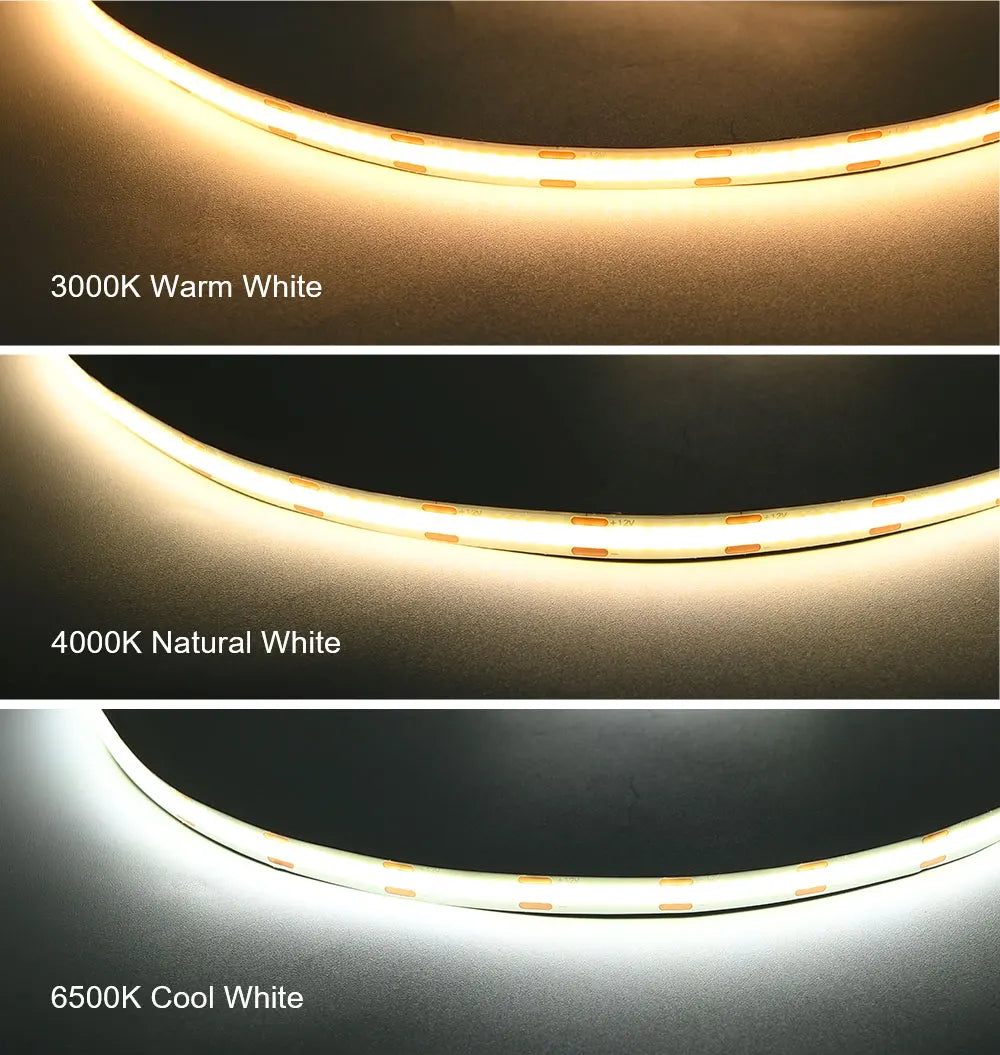

Color temperature: Warm White(3000K), Nature White(4000K), Cool White(6500K).
Color Rendering Index: Ra＞90

LED Sensor:

Control Type: 3pin Centralized Control
Work Voltage: 12-24V DC
Wire length: 200cm

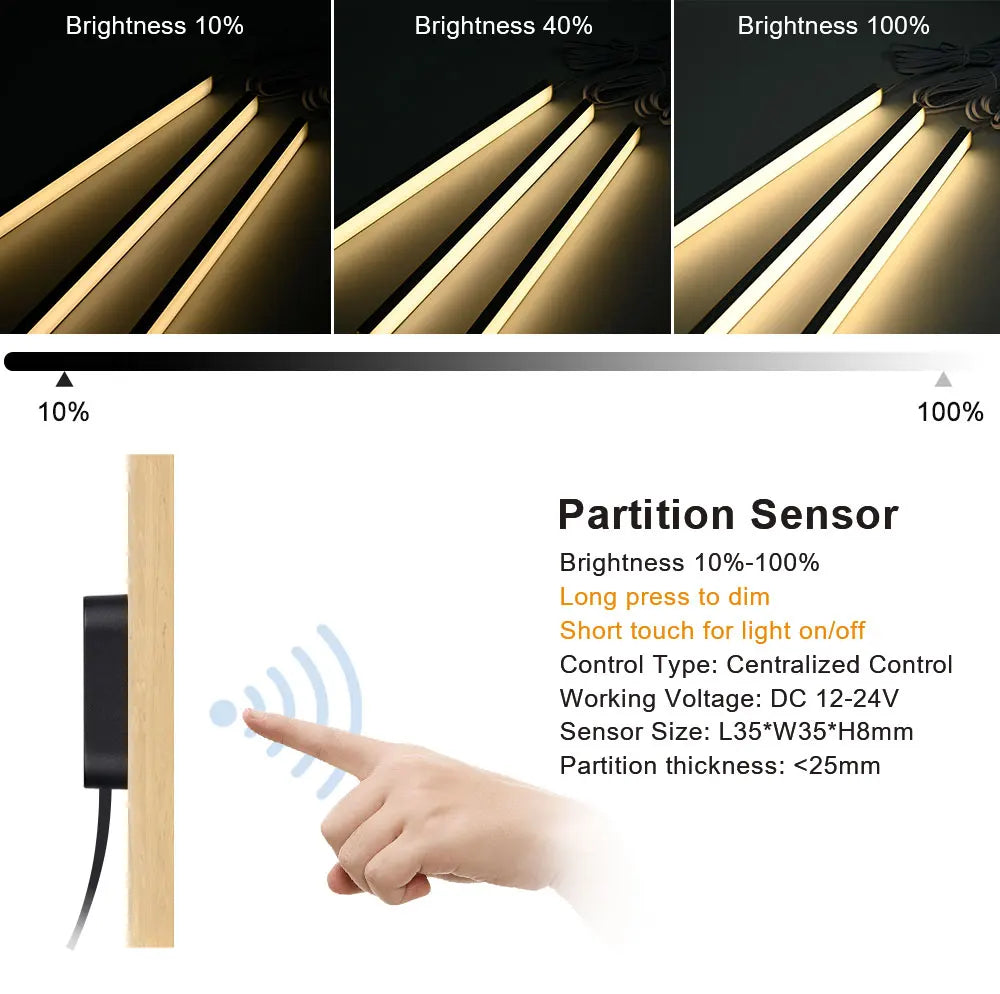

Partition Sensor：Short touch for light on/off, Long touch to dim
Sensor Size: L35*W35*H8mm
Partition thickness： <25mm

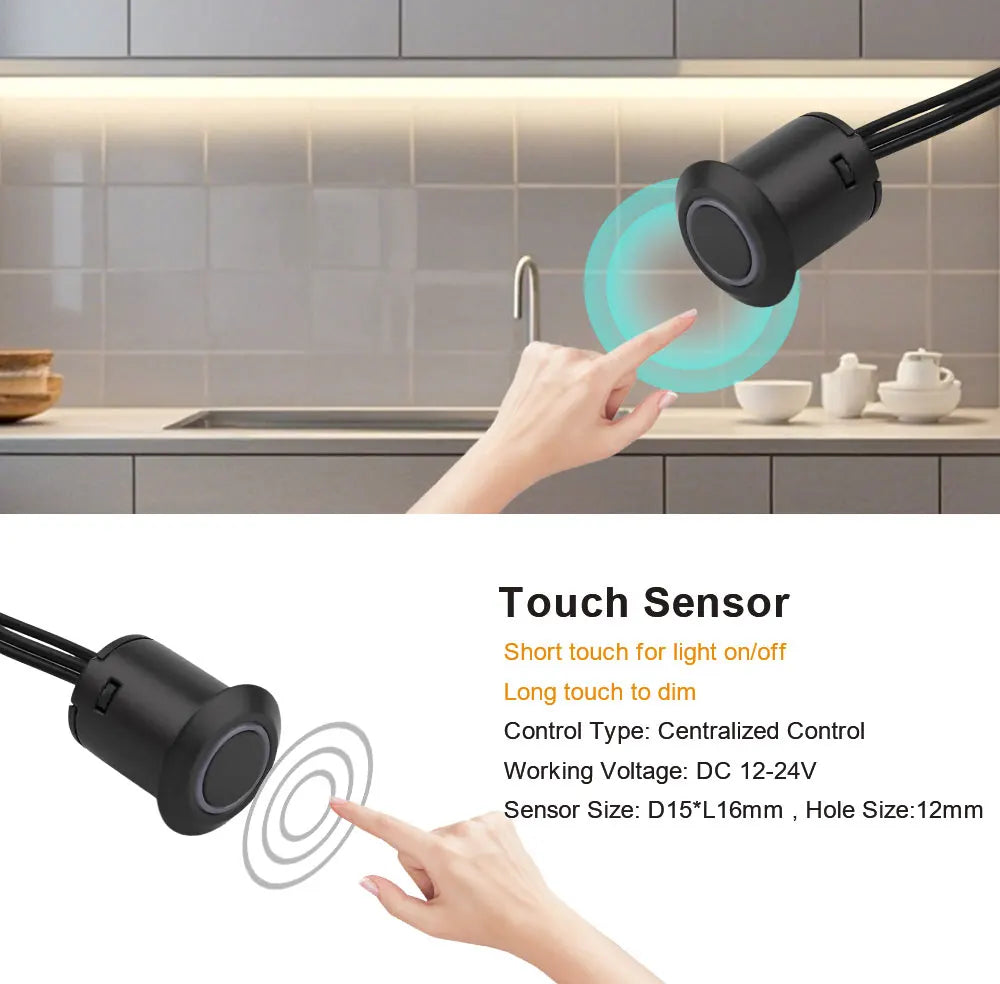

Touch Sensor: Short touch for light on/off, Long touch to dim
Sensor Size: D15*L16mm , Hole Size:12mm

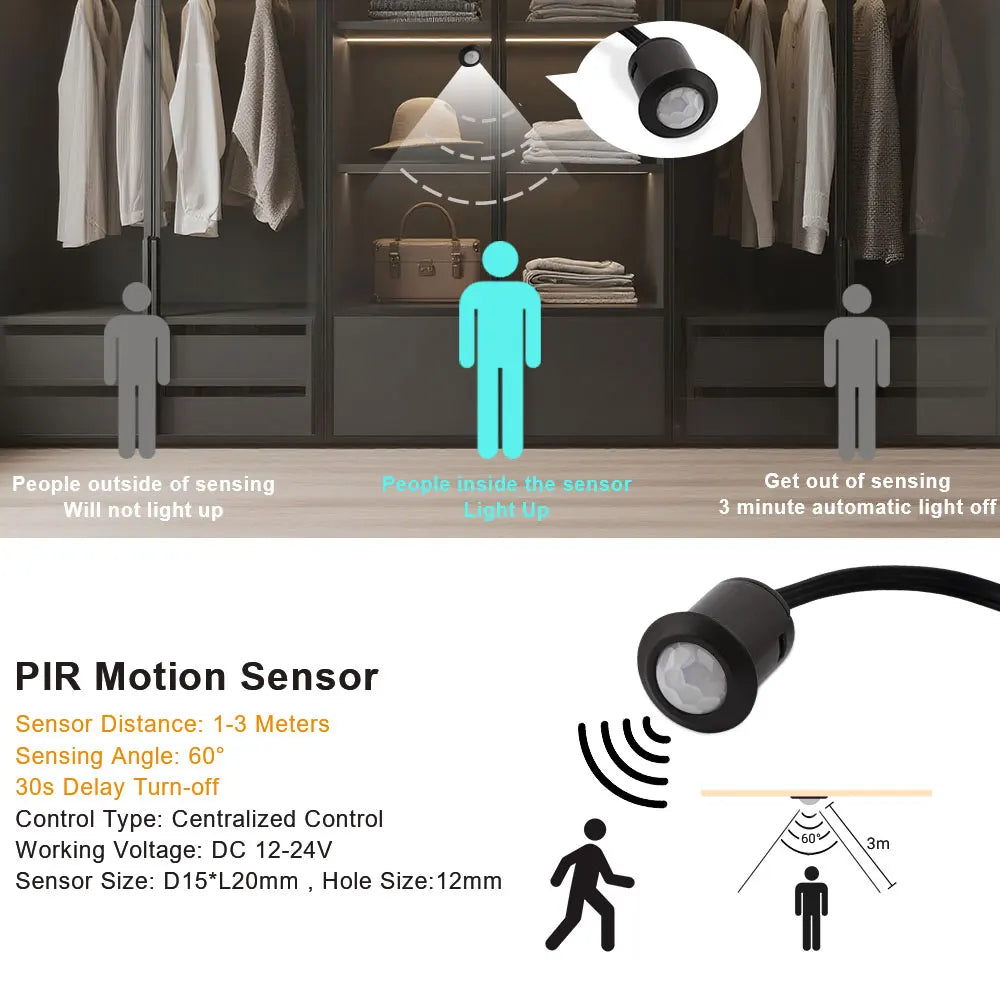

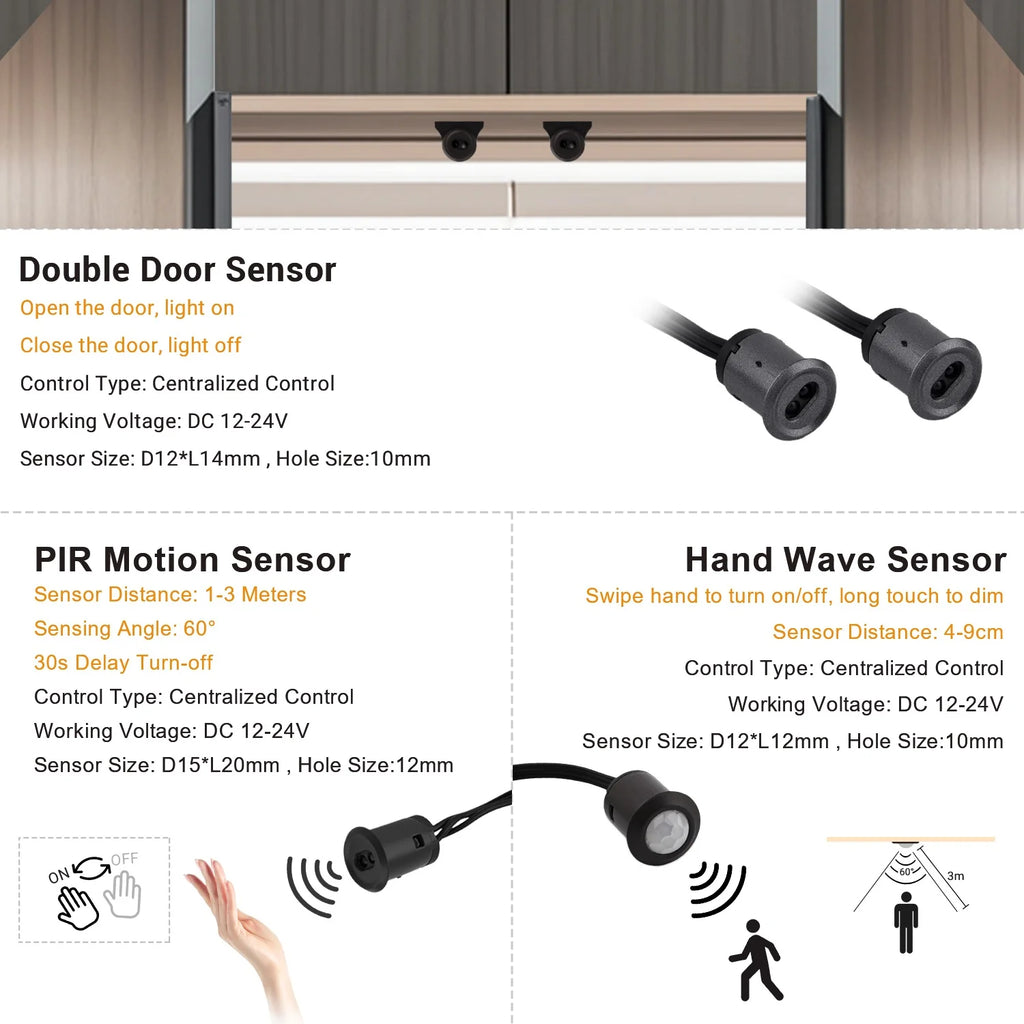

PIR Motion Sensor：30s Delay Turn-off
Sensor Distance: 1-3 Meters, 60 Degree,30s Delay Turn-off
Sensor Size: D15*L20mm , Hole Size:12mm

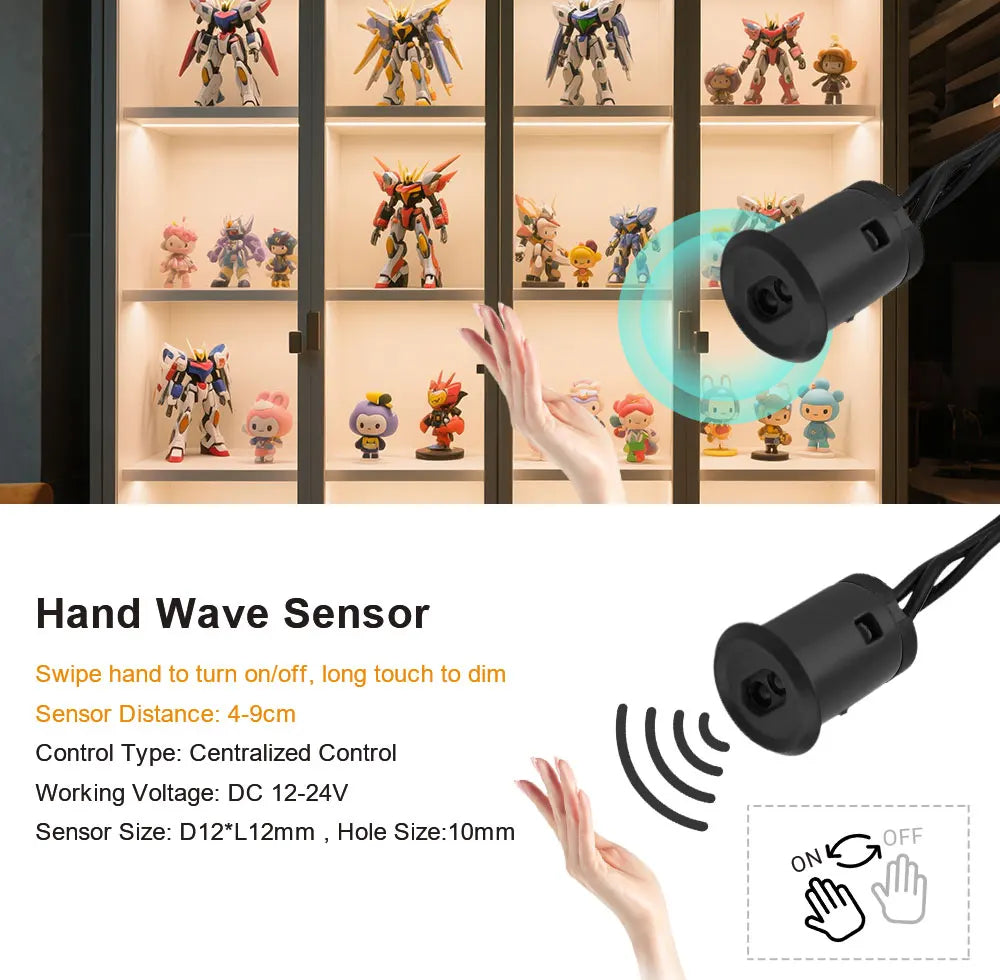

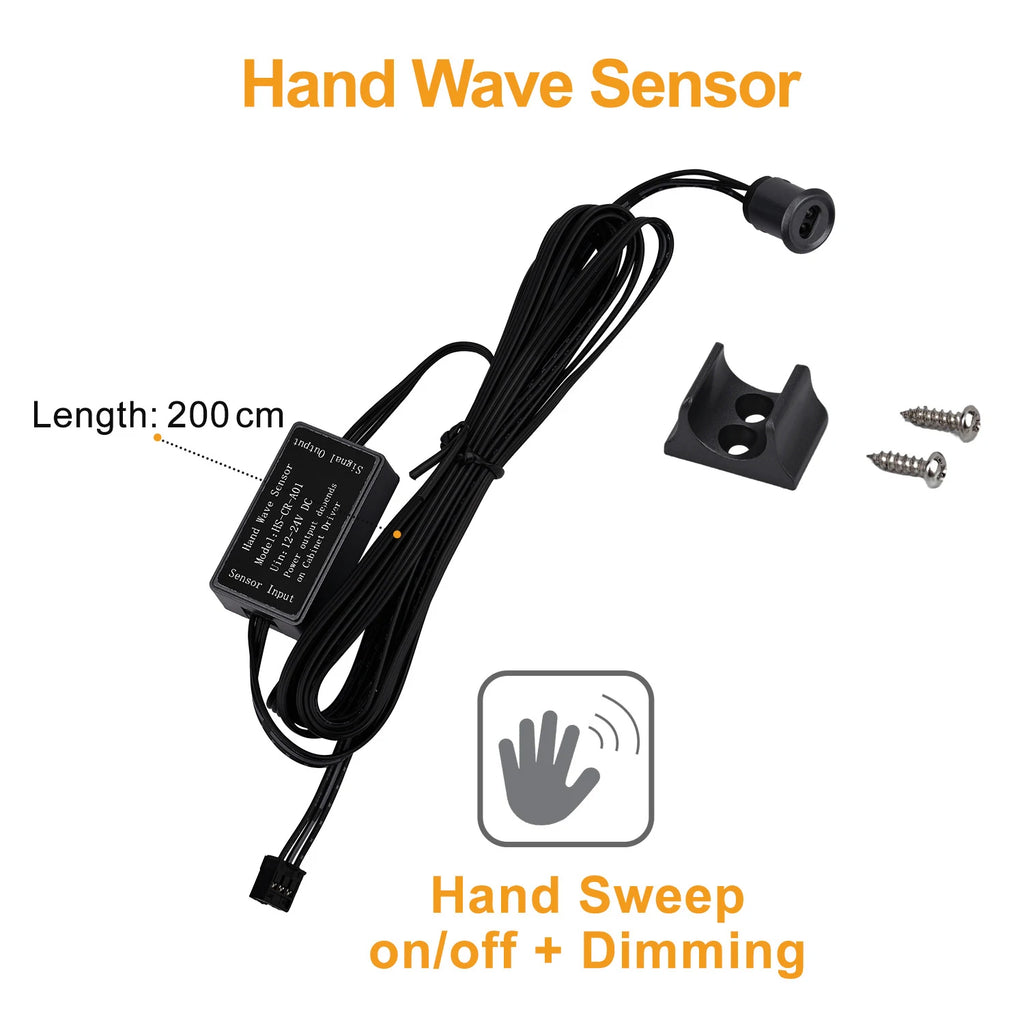

Hand Wave Sensor ：Swipe hand to turn on/off, long touch to dim
Sensor Distance: 5-10cm
Sensor Size: D12*L12mm , Hole Size:10mm

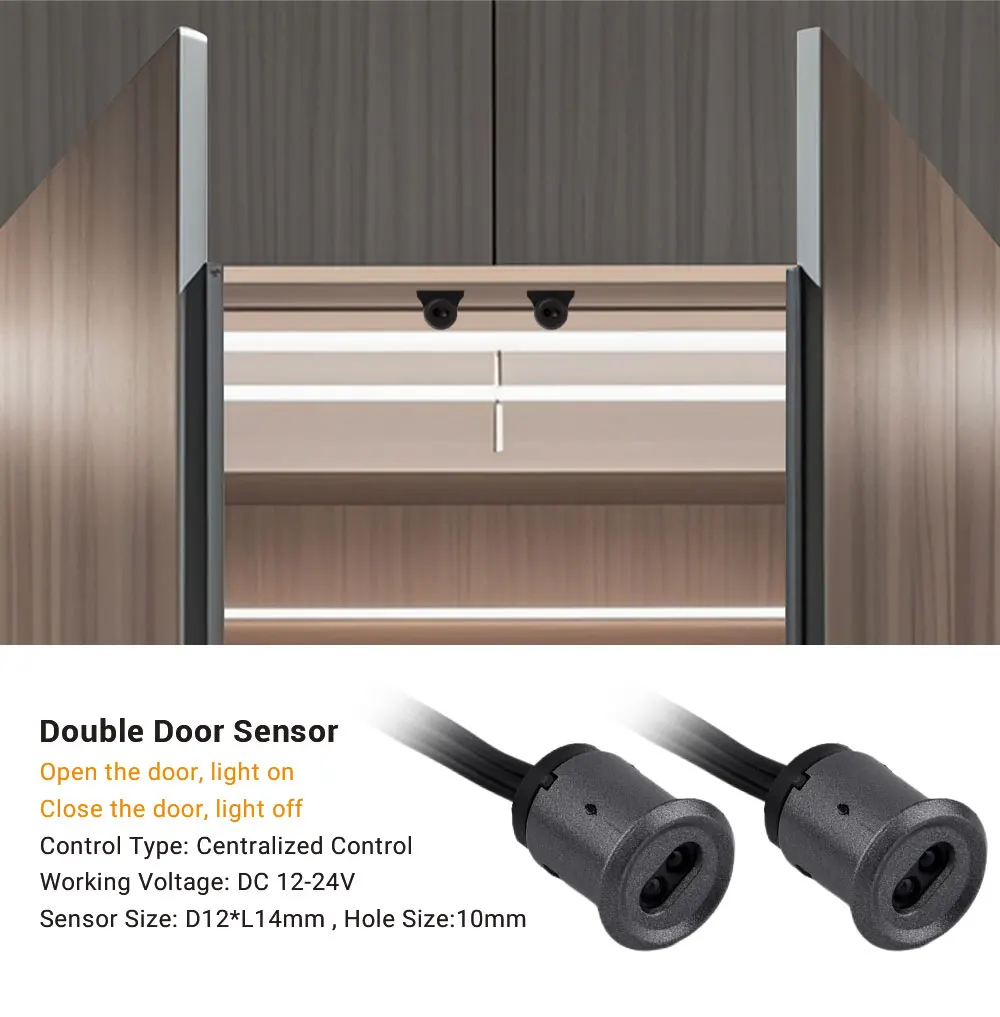

Double Door Sensor：Open the door, light on; Close the door, light off
Sensor Distance: 5-10cm
Sensor Size: D12*L14mm , Hole Size:10mm

LED Driver:

Input voltage: AC 180-240V
Output voltage: DC 12V
Output power: 36W/60W/100W/150W
Efficiency: ≥88%
Working Temperature: -20~+60℃
Waterproof rating: IP20 (non-waterproof)
